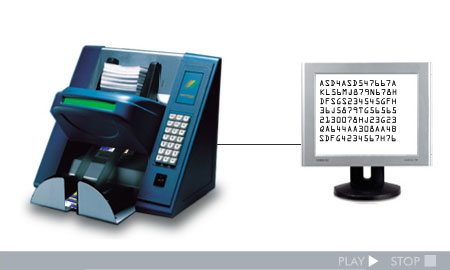

Demo - MT 25

MT25 Document Reader

ULTRA FAST LASER BARCODED DOCUMENT READER

MULTISCAN MT25

reads large volumes of barcoded documents at high speed and with great accuracy using laser technology, becoming a powerful tool to increase productivity.

MULTISCAN MT25

works stand alone storing the information read in an internal memory or sending it to the computer.

MULTISCAN MT25

is small, portable, silent, easy to install, operate and maintain and it can process different types of documents.

Features

TECHNICAL

  • Reading speed

    Up to 1100 documents per minute for the smallest allowed document size.

  • Speed Selection

    The operator can select the most suitable speed for each application, from the keypad, at any moment to read 300, 450 and 550 documents per minute.

  • Manual Operation

    Data and document batch header can be manually operated by means of the keypad.

  • Multiple Reading

    It can read up to 6 codes in different lines on the same document.

  • Autonomy

    The unit works as a smart peripheral, it does not need a PC for operation or configuration. Data can be transmitted to any host through an RS232C in stream or batch mode.

  • High Data Capture Capacity

    It reads up to 62 characters per line in any of the following codes: Code 128, I 2/5, C 39, Codabar, C 93 (optional). It can also read UPC and EAN.

  • Different code reading

    It reads documents with different types of codes and/or length within the same batch.

  • LCD display

    The display shows the number of documents read, equipment configuration, barcode type, speed, communication with the host and operation mode.

  • Password

    Access to the unit configuration can be password restricted.

  • Count Mode

    It can count documents without reading them.

  • Addition

    Besides reading, the unit can add data based on a certain field of the barcode in each document (date, branch, type, number, etc.).

  • Host Command

    Configuration, start, stop and other functions, if requested, can be commanded from the host.

  • Capacity

    Input tray capacity: 700 docs. (0.1 mm paper thickness) Output tray capacity: 500 docs.

  • Host communication

    Type: RS232

  • Supply voltage

    110/220v , 50/60Hz


    • » Up

DIMENSIONS

  • Height: 381mm (15")
  • Width: 419mm (16.5")
  • Depth: 368mm (14.5")
  • Weight: 11.9 Kg. (26 lbs)
  • Footprint: 260mm (10.2") [width] x 230 mm (9") [depth].

DOCUMENTS

  • Minimum Barcode - MT25
    Minimum size:
    57 mm (2.25") x 51 mm (2")
  • Maximum Barcode - MT25
    Maximum size:
    216 mm (8.5") x 101mm (4")
  • Paper Thickness: 0.08 mm. to 0.20 mm.


    • » Up

BARCODE MT25

  • Readable symbologies: Code 39, Code 128, I2/5, Codabar, UPC/EAN (standard symbologies).

  • Readable digits: 62 chars./ code
  • Maximum code length: 114 mm (4.5")
  • Minimum code height: 12 mm (1/2")
  • Maximum code density: 10 mils.
Applications
Applications MT25

  • Lottery tickets

  • Meal tickets

  • Admission tickets

  • Manufacturer´s coupons

  • Refund coupons

  • Kanban

  • Inventory labels

  • Shipping and receiving

  • Tags

  • Production control

  • Purchasing orders

  • Warranty cards

  • Gift certificates

  • Tax and invoice stubs

  • Installment stubs

  • Utility bills

  • Checks

  • Traveler´s checks

  • Deposit and extraction

  • Slips

  • Subscriptions

  • Return mail

  • Pre-paid health assistance

  • Barcoded Currency

  • Insurance policies

  • Issue forms
