MT31R New Conecpt in Automatic Data Capture for Documents

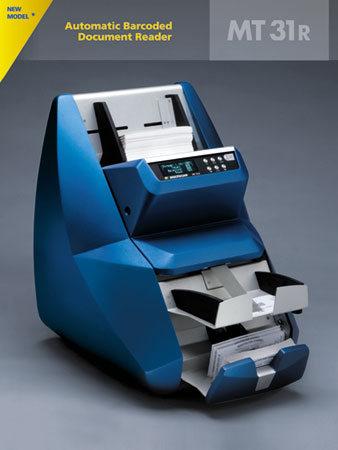

MT31R AUTOMATIC BARCODED DOCUMENT READER

NEW MODEL *

Automatic stop with full stacker and automatic restart when it is emptied.

Documents processed are neatly stacked in the same order they are fed.

Great productivity increase compared to previous models.

MULTISCAN MT31R

reads large volumes of barcoded documents at high speed and with total accuracy using laser technology. MULTISCAN MT31 R works stand alone.

MULTISCAN MT31R

is compact, portable, silent, easy to install, operate and maintain and it can process different types of documents.

MULTISCAN MT31R

is a reliable machine due to its sturdy construction and excellent components.

Nowadays, there are thousands of Multiscan machines working with different applications in more than 50 countries all around the world.

Features

TECHNICAL

  • Reading speed

    Up to 1100 documents per minute for the smallest documents.

  • Speed Selection

    The operator can select the most suitable speed for each application from the keypad at any moment.

  • Automatic Discard

    Defective documents, either damaged, illegible or strange are automatically sent to a discard bin.

  • Manual Operation

    Data and document batch header can be manually operated by means of the keypad.

  • Host Command

    Configuration, start, stop and other functions can be commanded from the host.

  • Multiple Reading

    It can read up to 6 linear codes on the same document.

  • Autonomy

    The unit works as a smart peripheral, it does not need a PC for operation or configuration. Data can be transmitted to any host through an RS232C in stream or batch mode.

  • High Data Capture Capacity

    It reads up to 62 characters per line in any of the following codes: Code 128, I 2/5, C39, Codabar, UPC and EAN. It can also read C93 (optional).

  • Different code reading

    It reads documents with different types of codes and/or length within the same batch.

  • VFD display

    The display shows operating data, configuration and status making it easy to operate the equipment.

  • Password

    Access to the unit configuration can be password restricted.

  • Count Mode

    It can count documents, banknotes or any other document without barcodes on it.

  • Addition and Sorting

    Apart from reading, the unit can add, sort and/or discard documents based on a certain field of the barcode of each document (date, branch, type, number, etc.)

  • Capacity

    Input tray capacity: 700 docs. (0.1 mm paper thickness) Output trays capacity: 250 docs. (accepted), 250 docs. (rejected)

  • Host communication

    Type: RS232C

  • Supply voltage

    110/220v , 50/60Hz

    » Up

DIMENSIONS

  • Height: 18.9" (480 mm)
  • Width: 18.5" (469 mm)
  • Depth: 18" (457 mm)
  • Weight: 41.9 lbs (19 Kg.)
  • Footprint: 10.2" (260 mm) [width]x 9" (230 mm) [depth].

DOCUMENT SIZE

  • Minimum Barcode - MT31R
    Minimum size 2.25"(57 mm) x 2"(51 mm)
  • Maximum Barcode - MT31R
    Maximum size 8.5" (216 mm) x 4"(101 mm)
  • Paper Thickness: 0.08 up to 0.20 mm


    • » Up

BARCODE

  • Readable symbologies: Code 39, Code 128, I 2/5, Codabar, UPC/EAN (standard symbologies), C93 (optional)

  • Readable characters: 62 chars./code
  • Maximum code length: 4.5" (114 mm)
  • Minimum code height: 1/2" (12 mm)
  • Maximum code density: 10 mils.
Applications
Applications MT31R

  • Cash-out tickets (TITO, EZPay)

  • Lottery tickets

  • Meal or restaurant tickets

  • Admission tickets

  • Refund coupons

  • KanBan

  • Inventory labels

  • Clothes tags

  • Production control cards

  • Warranty cards

  • Gift certificates

  • Tax and invoice stubs

  • Installment stubs

  • Utility bills

  • Checks

  • Traveler's checks

  • Subscriptions

  • Barcoded currency

Applications MT31R
