MV75z Envelope reader

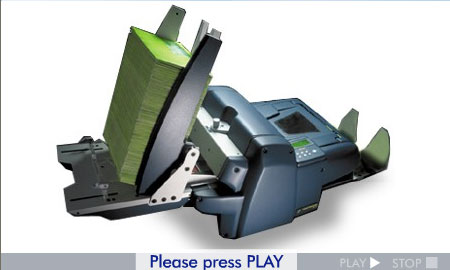

MV75 Automatic Envelope Reader

MV 75 Envelope reader

MULTISCAN MV75z

is the state-of-the-art envelope reader for high-speed linear and 2D barcoded data capture. It can optionally read OCR

MULTISCAN MV75z

has been designed to process a wide range of envelopes at a speed of up to 350 per minute.

MULTISCAN MV75z

automatically captures the data in envelopes of different kinds and sizes.

MULTISCAN MV75z

can also read the data through envelope transparent windows.

MULTISCAN MV75z

can also count envelopes and arrange batches of a certain number.

MULTISCAN MV75z

automatically feeds envelopes of different thicknesses within a certain batch.

Features

TECHNICAL

  • Automatic feeding error detection

  • It can read the following codes: Code 128, C39, UPC/EAN, Codabar, I 2/5. It can optionally read 2D bar codes (Datamatrix, PDF417, QR code), OCR and OMR.
  • Reading speed

    350 envelopes per minute for 4" or 100 mm high envelopes.
  • Host communication.

    Type: RS 232 (standard).
  • Feeding tray capacity of up to 400 envelopes
    (1mm thick envelopes) or 8 Kgs.
  • Standard tray for read envelopes with capacity for 130 pieces for 1mm thick envelopes.
  • Optional:

    - output conveyor belt module
    - discard module for unread
    or unclassified pieces
    - Supply Voltage: 110/220 V, 50/60 Hz..


  • » Up

DIMENSIONS

  • Height: 26.4" (670 mm)
  • Width: 45.3" (1150 mm)
  • Depth: 17.3" (440 mm)
  • Weight: 77 lbs. (35 Kg.)
  • Footprint: 45.3" (1150 mm) [width] x 17.3" (440 mm) [depth].

DOCUMENTS

  • Minimun Document MV 75
    Minimum size:
    8.46" (215 mm) x 3.93" (100 mm)
  • Maximum Minimun Document MV 75
    Maximum size:
    11.18" (284 mm) x 7.87" (200 mm)
  • Envelope thickness: 0.5 mm up to 6mm


  • » Up

BARCODE

  • Readable symbologies: Code 39, Code 128, I2/5, Codabar, UPC/EAN (standard symbologies).
  • Readable number of codes: 6 codes/ piece
  • Readable digits: 62 chars./ code
  • Maximum code length: 4.5" (114mm)
  • Minimum code height: 1/ 2" (12mm)
  • Maximum code density: 10 mils.
Applications
Applications MV 75
  • All kinds of barcoded envelopes

  • Issue Control of Mail Pieces

  • Control of Mail Pieces Delivered

    to be Distributed
  • Control of Returned
    or Undelivered Mail Pieces

  • Shipping Control of Envelopes Containing Cards, Invoices, Documents or Values

  • Tracking and Tracing Pieces

  • Mailing Shipping Control:
    Direct Marketing
