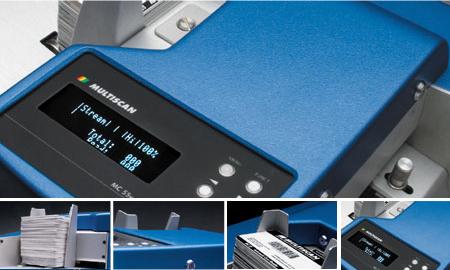

MULTISCAN MC55v captures barcodes in plastic cards or in any other kind
of stiff material such as cardboard, metal and any other on which barcodes
can be printed.
MULTISCAN MC55v can count and/or read cards and arrange batches of a certain number of cards.
MULTISCAN MC55v can add a data field through the whole batch at once.
Data from read cards is sent to a PC to be recorded and processed.
It reads the most frequent linear barcodes.
It is an accurate and important tool for the effective control of this kind of values of increasing diffusion in financial and commercial activities.

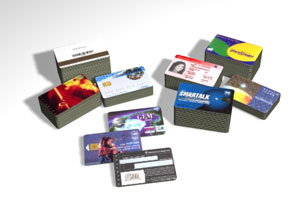

Applications
Features
Features
TECHNICAL
- Automatic feeding of different kinds of cards.
- Adjustable document separation according to thickness.
- Automatic error feeding detection.
- Reading speed: 300, 450 barcoded cards/m.
- Host communication. Type: RS232 (standard)
- Feeding tray capacity: up to 120 cards (0.8 mm thick)
- Reception tray capacity: up to 120 cards (0.8 mm thick)
» Up
DIMENSIONS
- Height: 300 mm (11.8")
- Width: 410 mm (16.1")
- Depth: 310 mm (12.2")
- Weight: 10.5 Kg. (23 lbs.)
- Footprint: 330 mm (13") [width] x 250 mm (9.8") [depth].
DOCUMENTS
Minimum size:
44 mm (1.75") x 76 mm (3")
Maximum size:
127 mm (5") x 152 mm (6")
- Card thickness: 0.5 mm up to 3 mm.
» Up
BARCODE
Readable symbologies: Code 39, Code 128, I2/5, Codabar, UPC/EAN (standard symbologies).
- Readable number of codes: 6 codes/ piece
- Readable digits: 62 chars./ code
- Maximum code length: 4.5" (114mm)
- Minimum code height: 1/ 2" (12mm)
- Maximum code density: 10 mils.
