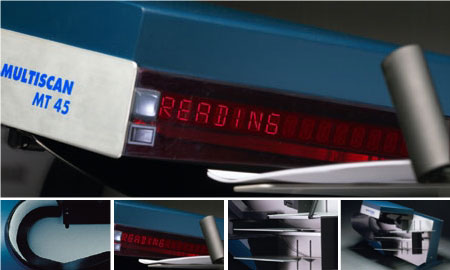

MULTISCAN MT45
is the state-of the-art page reader for high-speed multiple barcoded data capture.
MULTISCAN MT45
was designed to handle a wide range of applications at speeds of up to 150 pages per minute.
MULTISCAN MT45
is equipped with a powerful laser scanner which allows the accurate reading of up to 60 barcodes per page and up to 62 characters per code. Reads the following symbologies: Code 128, Code 39, UPC/EAN, Codabar, I 2of5.
MULTISCAN MT45
optionally reads the following 2D barcodes: PDF 417, DataMatrix, QR Code, MaxiCode, Aztec, VeriCode and POSTNET.
MULTISCAN MT45
can be programmed by the user making it a highly versatile machine.
Applications
Features
Features
TECHNICAL
Speed Selection
The operator can select the most suitable speed for each application, at any moment.Automatic Feeding
With adjustable document separation, automatic document feeding, miss out of paper, overlap, double feeding and paper jam detection.Automatic Discard
Defective documents, either damaged, illegible or strange are automatically sent to a discard bin.Multiple Reading
It can read up to 60 codes in different lines on the same document.Display
The operator can select the most suitable speed for each application, at any moment.High Data Capture Capacity
It reads up to 62 characters per line in any of the following codes: Code128, I 2/5, Code 39, Codabar, Code 93(Optional). It can also read UPC and EAN.Different Code Reading
It reads documents with different types of codes and/or length within the same batch.Customization
Downloadable firmware allows on site customization and upgrades.Capacity
Input tray: 550 docs. (0.1 mm thickness paper) Output trays: 400 docs. (accepted), 70 docs. (rejected)Transport speed
120 pages/min (A4 or letter)Maximum speed
It reads up to 60 codes/pageHost communication
Type: RS232
Speed: 1200 bps up to 38400 bpsSupply voltage
110/220v , 50/60Hz
DIMENSIONS
- Height: 435 mm (17")
- Width: 715 mm (28")
- Depth: 390 mm (15.5")
- Weight: 35 Kg (77 lbs)
- Footprint: 720 mm (28.3") [width] x 350 mm (13.8") [depth].
DOCUMENTS
- A4(Europe), Letter(U.S.A.) and Legal
Minimum size:
63 mm (2.5") x 89 mm (3.5")
Maximum size:
228 mm (9") x 304 mm (12")
- Paper thickness: 0.08 up to 0.25 mm (+stuck labels)
» Up
BARCODE
- Readable symbologies: Code 39, Code 128, I2/5, Codabar, UPC/EAN (standard symbologies)
- Readable digits: 62 chars./ code
- Maximum code length: 127 mm (5")
- Minimum code height: 12 mm (1/2")
- Maximum code density: 17 mils
